AUXILIARY CIRCLE

The solution to many geometric problems begins with drawing auxiliary lines that help establish a connection between data and unknown elements of the figure. Recalling a successful auxiliary formation is often difficult. Therefore, you should approach each solved problem and try to find out why certain auxiliary lines lead to the goal. Is it possible to use the found example to solve some other problems?

At the next meeting of the mathematical circle, we will consider one of the interesting examples of solving geometric problems, which consists of introducing an auxiliary circle into the drawing.

Example 1. The altitudes AP, BQ and CR are drawn in an acute triangle. Prove that $\angle ABQ = \angle APR$).

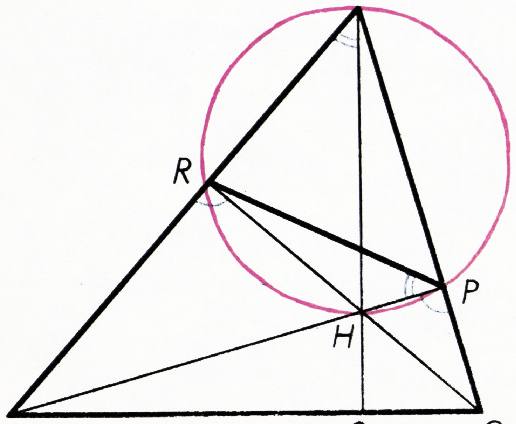

Solved and e. Let H be the point of intersection of the altitudes of triangle ABC (Fig. 1). Since $\angle APB$ and $\angle CRB$ are straight lines, a circle can be described around the quadrilateral BPHR by taking BH as the diameter. Having constructed it, we replace that $\angle ABQ = \angle APR$ (as inscribed angles based on the same arc).

*) See «Kvant» No. 1, 1970, p. 59.

Fig. 1.

Thus, constructing an auxiliary circle allows you to use the inscribed angles theorem and thereby establish a connection between the angles specified in the task.

Find out how the result changes if $\angle B$ of triangle ABC is obtuse.

Solve several similar problems yourself.

1. From an arbitrary point M ka-tega BC of right triangle ABC, a perpendicular MN is dropped onto the hypotenuse AB. Prove that $\angle MAN = \angle MCN$.

2. Prove that the line connecting the vertex of a right angle of a right triangle with the center of a square externally constructed on the hypotenuse bisects the right angle of the triangle.

3. From an arbitrary point M inside a given angle, perpendiculars MP and MQ are dropped to the sides of the angle. From the vertex of angle A a perpendicular AK’ is dropped onto the segment PQ. Prove that $\angle KAP = \angle MAQ$.

Example 2. Prove that a segment connecting the bases of two altitudes of an acute triangle cuts off from it a triangle similar to the given one.

29

Fig. 2.

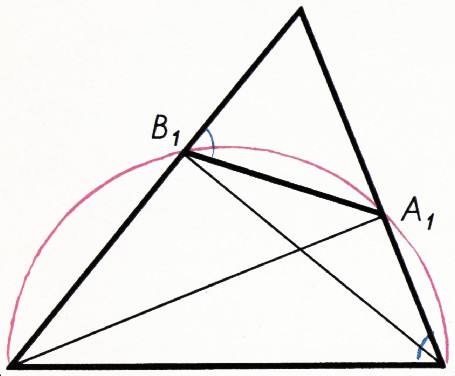

Solved and e. Let $AA_1$ and $BB_1$ be the altitudes of the acute triangle $ABC$ (Fig. 2). $\angle AA_1B$ and $\angle AB_1B$ are straight, so a circle constructed on the $AB$ side of the triangle as a diameter will pass through the points $A_1$ and $B_1$. Further, $\angle ABC = 180^\circ$ - $\angle AB_1A_1$, $\angle A_1B_1C = 180^\circ$ - $\angle AB_1A_1$, therefore $\angle ABC = \angle A_1B_1C$, and triangles $ABC$ and $A_1B_1C$ are similar.

This problem can be solved without auxiliary constructions, if we notice that the triangles $AA_1C$ and $BB_1C$ are similar and write down the proportion

$$\frac{A_1C}{AC} = \frac{B_1C}{BC}.$$

Solve each of the following two problems in ways to work around them.

4. From the vertex $A$ of the parallelogram $ABCD$ the heights $AM$ and $AN$ are drawn. Prove that triangles $AMN$ and $ABC$ are similar.

5. From the base $H$ the heights $CH$ of the triangle $ABC$ are lowered to the sides $AC$ and $BC$ perpendiculares $HM$ and $HN$. Prove that triangle $CMN$ is similar to triangle $ABC$.

Sometimes it is advantageous to describe a circle and a triangle.

Example 3. Prove that the square bicsectrix of a triangle is equal to the difference between the product of its enclosing sides and the product

segments of the third side into which it is divided by a bicector.

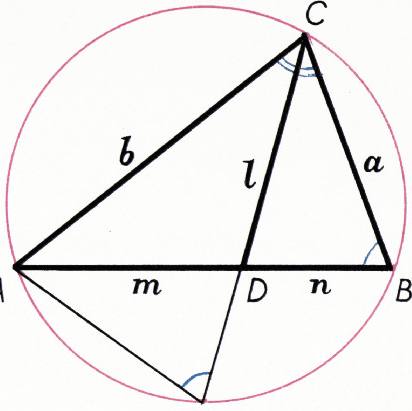

Solved and e. We describe a circle around the triangle $ABC$ and extend the bicsectrix $CD$ of the triangle until it meets the circle at the point $E$ (Fig. 3). Let $BC = a$, $AC = b$, $AD = m$, $BD = n$, $CD = l$, $DE = x$.

According to the conditions, $\angle ACE = \angle BCE$, in addition, $\angle AEC = \angle ABC$, are like inscribed angles based on the same arc. Consequently, the triangles $ACE$ and $BCD$ are similar and the equality $$\frac{l + x}{b} = \frac{a}{l},$$ is true, hence $l^2 = ab - lx$. Chords $AB$ and $CE$ intersect at point $D$. Therefore the equality $lx = mn$ holds. Therefore, $l^2 = ab - mn$.

Example 4. The altitude and median of a triangle drawn from one vertex inside it are different and form equal angles with the sides emerging from the same vertex. Prove that the triangle is right-angled.

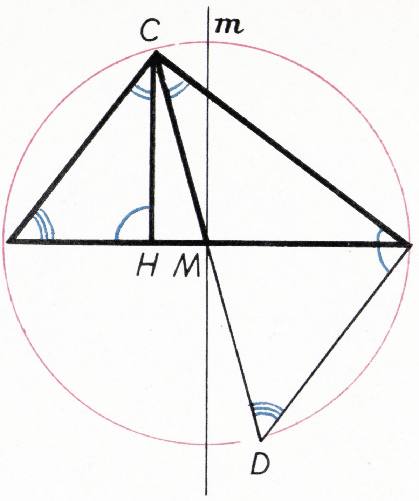

Solved and e. Let the height $CH$ and the median $CM$ of the triangle $ABC$ oblige the sides $AC$ and $BC$ to be equal angles (Fig. 4). Let us describe a circle around the triangle $ABC$ and extend the median $CM$ until it meets the circle at point $D$. Consider triangles $ACH$ and $BCD$. Since $\angle ACH = \angle BCM$ is by conditions and $\angle A = \angle D$,

30

Fig. 4.

as inscribed angles based on the same arc, then $\angle AHC = \angle CBD = 90^\circ$. Therefore, $CD$ is the diameter of the circle.

The center of the circle lies on the diameter $CD$ and on the perpendicular $m$ to the side $AB$ at its midpoint $M$. Since the median $CM$ is not a height, the lines $CD$ and $m$ have only one common point $M$, which is the center of the circumscribed circle. Therefore, $AB$ is the diameter of the circle and $\angle ACB = 90^\circ$.

Use the result to solve the next two problems.

6. Determine the angles of the triangle in which
   a) the median and height drawn from one vertex divide the angle into three equal parts;
   b) the median, bisector and altitude drawn from one vertex divide the angle at this vertex into four equal parts.
7. Construct a triangle, knowing the angles formed by the median, bisector and altitude emerging from one vertex.
   Example 5. Construct an equidistant triangle so that its vertices lie respectively on three given parallel lines.

Fig. 5.

There are several known solutions to this interesting problem using expressions around a point, similarity and algebraic methods. A very short solution is obtained by constructing an auxiliary circle.

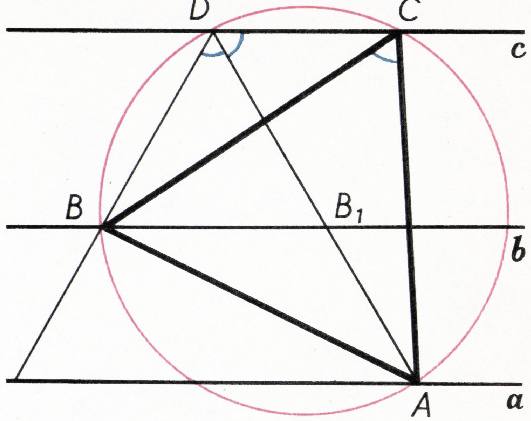

Solution. Let $ABC$ be the original equidistant triangle whose vertices lie respectively on the parallel lines $a, b$ and $c$ (Fig. 5). The circle circumscribed around it intersects the line $c$, in addition to the point $C$, at some point $D$. Then, based on the property of inscribed angles, we have $\angle ADC = \angle ABC = 60^\circ$.

The following construction follows from this. From an arbitrary point $D$ of line $c$ we draw rays that form angles $60^\circ$ and $120^\circ$ with line $c$. Let one of the rays intersect line $a$ at point $A$ and line $b$ at point $B_1$, and the other ray intersect line $b$ at point $B$. Then the segment $AB$ will be the side of the triangle $ABC$.

Let us plot on the line $c$ the segment $DC$ equal to the segment $AB_1$, so that the points $C$ and $A$ lie on the same side of the line $BD$. Then the point $C$ is a triangle of triangle $ABC$, since triangles $ABB_1$ and $BCD$ are equal, which means that $AB = BC$ and $\angle ABC = 60^\circ$.

Thus, the construction technique

31

Fig. 6.

It is advisable to use the construction of an auxiliary circle when solving some construction problems.

Let’s consider another difficult problem, in which the most difficult thing to solve is to guess how to describe a circle around the squares.

Example 6. On sides AC and BC of triangle ABC, squares ACA₁A₂ and BCB₁B₂ are constructed outside it. Prove that lines AB₁, A₁B and A₂B₂ intersect at one point, and determine the angles between these lines.

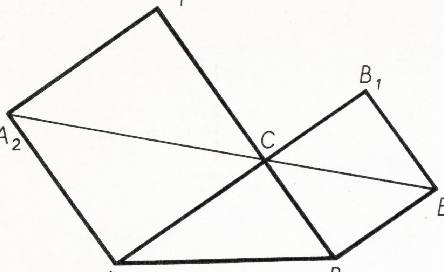

Solution. If ∠ACB = 90°, then the validity of the theorem is obvious. Lines AB₁ and A₁B are redefined and each of them intersects line A₂B₂ at point C at an angle of 45° (Fig. 6).

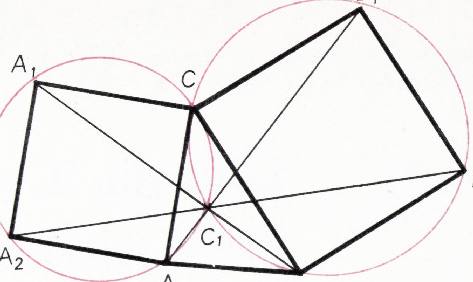

If ∠ACB ≠ 90°, then the circles circumscribed about the squares have, in addition to the point C, another common point C₁, which turns out to be the intersection point of the lines AB₁, A₁B and A₂B₂ (Fig. 7). Indeed, ∠A₂C₁C = 90°, like a hanging one, resting on a semicircle. Similarly ∠CC₁B₂ = 90°. Therefore, ∠A₂C₁C + ∠CC₁B₂ = 180°, i.e. rays C₁A₂ and C₁B₂ form a straight line.

In the same way, it is proved that the point C₁ lies on the lines AB₁ and A₁B.

Considering the obtained inscribed angles, we find that the straight lines AB₁ and A₁B are mutually redefined and each of these straight lines makes an angle of 45° with the straight line A₂B₂.

Fig. 7.

The next task has a lot in common with the previous one.

8. On the sides AB, BC and CA of an arbitrary triangle ABC, equilateral triangles ABC₁, BCA₁ and CAB₁ are constructed outside it. Prove that lines AA₁, BB₁, CC₁ intersect at one point and each of them forms an angle of 60° with the other.

9. Prove that if two opposite angles of a quadrilateral are obtuse, then the diagonal connecting the vertices of these angles is shorter than the second diagonal.

Let us present two more problems involving maximum and minimum, for solving which it is also advisable to construct an auxiliary circle in a certain way.

10. On one side of the angle with the vertex at point S are the given points A and B. Find on the other side the point C from which the segment AB is visible at the most angle.

11. From an arbitrary point M lying on side AB of triangle ABC (or on its extension), perpendiculars MP and MQ are drawn to sides AC and BC. Under what conditions will the segment PQ be the longest?

Thus, various geometric problems are solved using the same technique. The construction of an auxiliary circle allows you to increase the number of theorems that can be used when solving a problem, and thanks to this, you can find dependencies between the elements of the figure.
